It is an upgrade of EK-2000, wider range of butyl is accepted.
Contact Us
The TE-FNG series is a fully automated IG production line integrating edge deletion, washing, framing, gas filling, and sealing, replacing traditional complex steps like spacer cutting and butyling to boost productivity with less labor. It achieves perfect sealing and structural strength by combining Flexible Warm Edge technology with reactive Hot Melt sealant, while high-percentage gas filling enhances heat insulation. Features include high-speed operation with EtherMAC and servo drives for precise coordination. It is equipped with options for Hot Melt or two-component sealing, shaped patterns, triple glass, and customization for oversized units up to 3300x10000mm.
Contact Us
The machine model supports a maximum glass size of 3000 mm by 6000 mm and a minimum glass size of 250 mm by 400 mm. It operates on a three-phase, 380 V, 50 Hz electrical power supply. The hollow glass thickness it can handle ranges from 15 mm to 75 mm. The conveying speed is adjustable from 0 to 40 meters per minute, and customized sizes are available upon request.
Contact Us
The inspection section features a frame structure with built-in LED for spacer frame mounting during inspection, while the assembly section assembles two or more glass pieces into IG units, customizable for mega sizes up to 8000mm or quad-panel units.
Contact Us

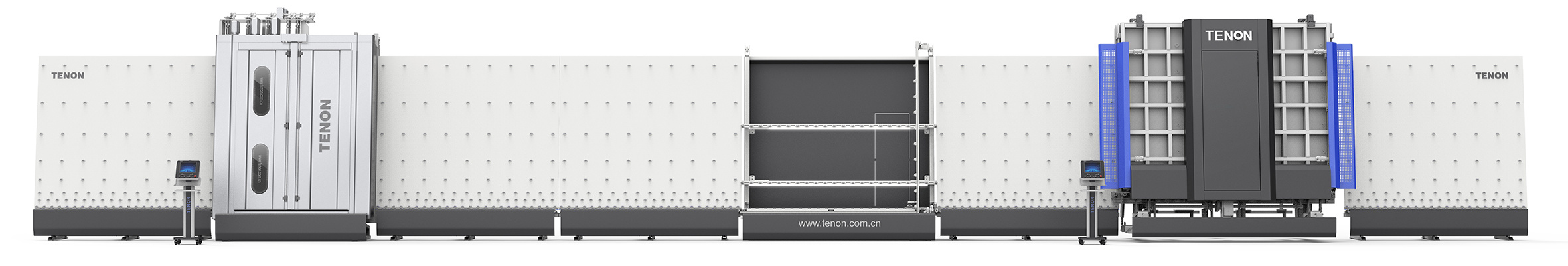

TE-NGP In addition to the ordinary TE technical characteristics, added online gas filling function. Utilizing high technologies: EtherMAC system, servo control pressing, flow monitoring and bottom air-curtain charging method to achieve high speed, high penetration rate with less consumption. An online gas monitoring system available as an option.
Contact Us

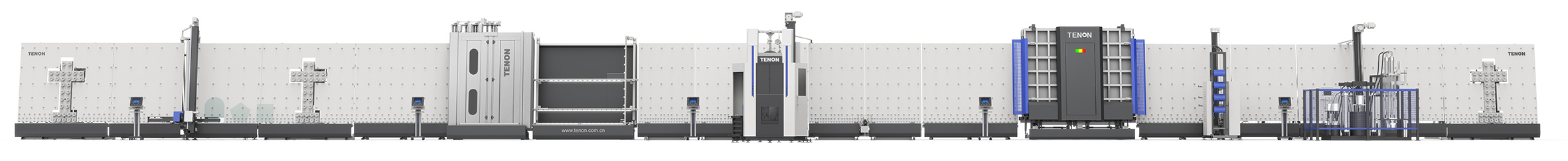

TE-T series is a technological innovation that further optimizes and integrates the insulating glass production process. It is the most advanced and efficient insulating glass production program in the world. This line, with automatic thermoplastic warm edge application machines as the core, combines automatic vertical loader, egde delection, cork pad applicator, sealing robot and vertical unloader, etc. It performs at high speed, which improves efficiency furthermore lower lador cost and the impact of human factors on product quality.
Contact Us
