The Yinrui Intelligent Mobile Worktable Drilling Equipment features a robust PLC control system that supports 24/7 operation with synchronized bidirectional movement of both worktable and main body. With full servo-driven performance and a dual-servo drive on the worktable, it delivers rapid, precise glass positioning and drilling. Its arch-body structure ensures stability and minimal vibration, while the stainless steel waterproof drill head offers durability and easy maintenance. It handles glass sizes from 100 × 100 mm to 1200 × 600 mm, with thicknesses of 3–19 mm, achieving cycle times under 6 seconds per hole, concentricity of ±0.1 mm, and positioning accuracy of ±0.2 mm. It also supports drilling hole diameters between 5–30 mm, with drilling speeds up to 250 m/min and lift speeds ranging from 0–3 mm/min (slow) to 200 mm/s (fast).
Contact Us
Yinrui intelligent multi-functional glass cutting machine integrates the glass loading, cutting and breaking on the main frame of the cutting device, which is tailor-made for users with limited space.
Contact Us

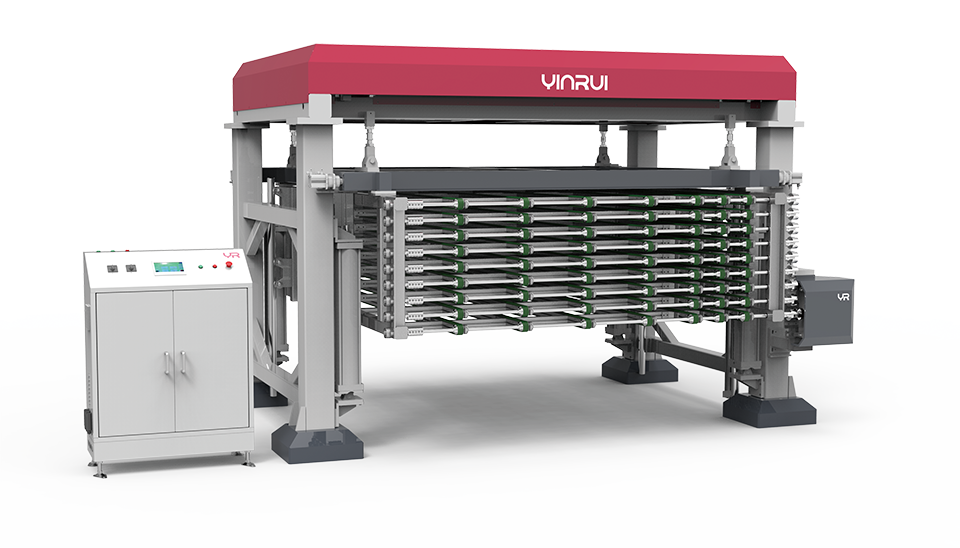

This system is specially designed for efficient glass storage and sorting—both prior to edge grinding (pre-edging) and tempering (pre-tempering). It offers multi-layer storage with single-layer multi-sheet handling and seamless transverse transfer, transforming scattered cut glass into neat, organized batches. As pre-tempering infrastructure, it acts as a buffer to maximize furnace loading and enhance production rhythm. Key features include a stable lifting mechanism with anti-drop protection, modular 10-layer capacity for scalable storage, intelligent dispensing control to sequence glass retrieval optimally, fast and accurate layer positioning enabled by AI, and a proprietary integrated system with real-time remote upgrade support. Additionally, the system optimizes layout planning to pre-sort glass for edge grinding and reduce waste.
Contact Us

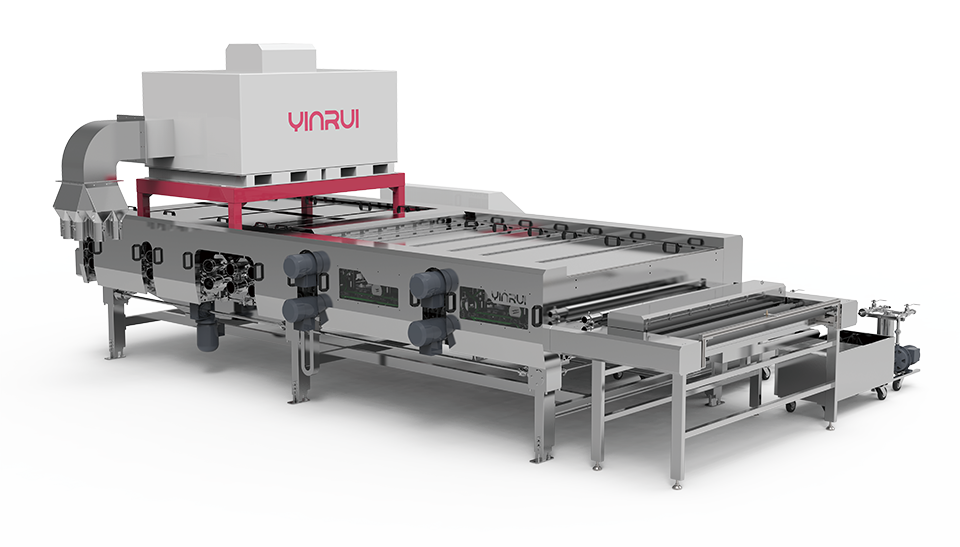

Yinrui Intelligent Photovoltaic Coated Glass Cleaning Equipment consists of a transmission system, ultrasonic cleaning, two-fluid cleaning, pure water brushing, cold and hot air drying, and an intelligent electrical control system. It is a specialized equipment used for ultra-clean cleaning and fast drying of the glass surface before deep processing stages such as mirror production, vacuum coating, tempering, bending, and laminating.
Contact Us

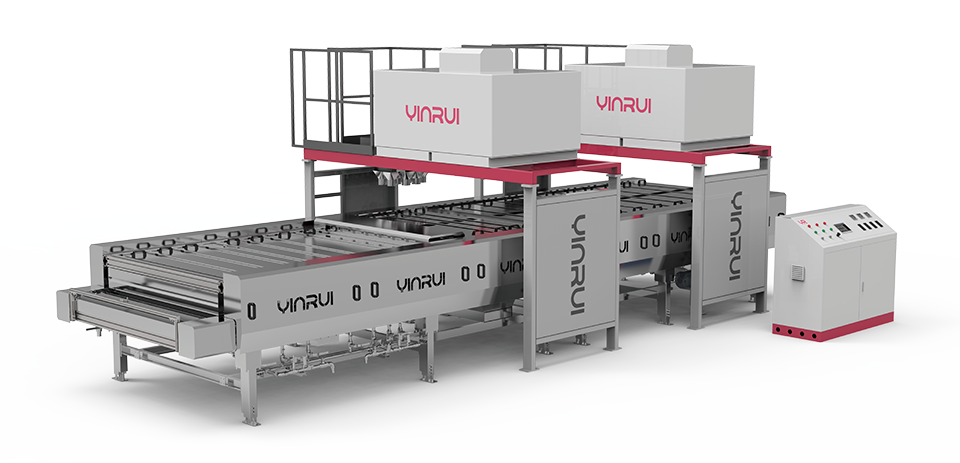

Yinrui Intelligent Photovoltaic Glass Cleaning Equipment adopts international technology and is designed with modular standards according to international norms. It forms a series of products tailored for photovoltaic automated production lines, meeting the glass cleaning requirements of different process stages along the entire line. The equipment comes in various specifications, featuring intelligent operation, easy maintenance, and quick servicing.
Contact Us

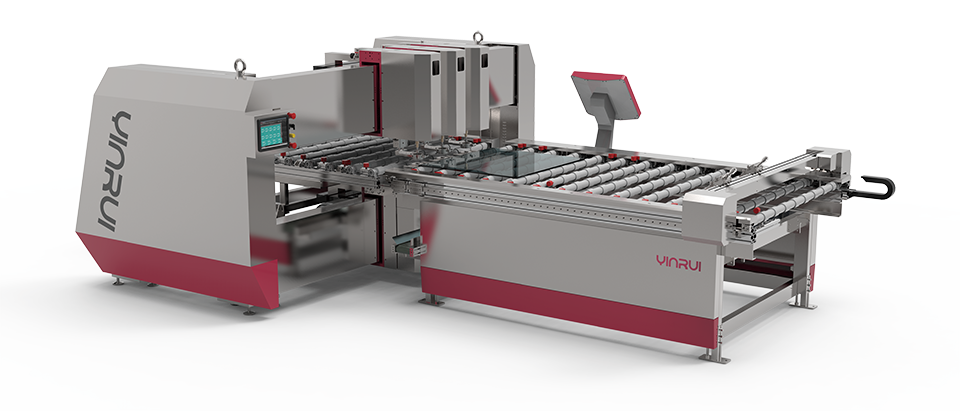

This high-performance system features an intelligent servo motion control for stable, 24/7 operation. The gantry-style frame includes a pass-through conveyor that easily integrates with existing glass processing lines. Equipped with a tri-spindle coaxial drilling setup, it enables synchronized three-hole drilling or independent single-spindle operation for flexible and efficient workflows. A servo-based positioning system ensures accurate and smooth movement, while glass arrival detection supports precise alignment at high speeds. It handles glass panels ranging from 2500 × 1350 mm to 1200 × 600 mm, with thicknesses between 1.8–3.2 mm. The system achieves cycle times of under 6 seconds per hole, concentricity accuracy of ±0.1 mm, and positioning precision of ±0.2 mm. Drill head speeds reach up to 70 m/min, with vertical speeds of 0–3 mm/min for slow lifting and 200 mm/s for fast lift.
